Types of Data paths
Types of data paths:
In any design, there can be only 4 types of data paths:1. Reg-to-Reg paths
2. Input-to-Reg paths
3. Reg-to-output paths
4. Input-to-Output paths
End point: D pin of a flop
The above analysis is true when no clock uncertainty or clock jitter is considered.
When clock uncertainty is considered, the above analysis can be framed as:
Now, adding clock jitter to above analysis:
3. Reg-to-output paths
4. Input-to-Output paths
Reg-to-Reg paths:
Start point: CLK pin of a flopEnd point: D pin of a flop

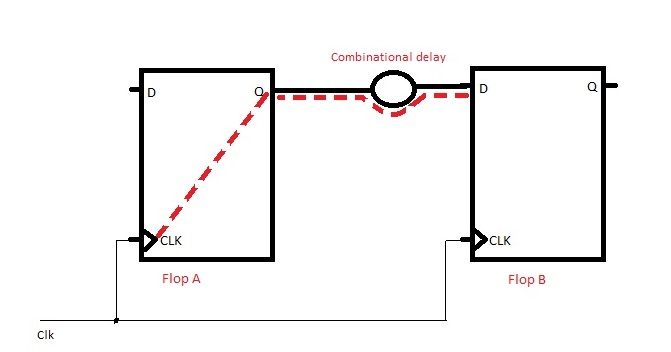

Fig: Reg-to-Reg paths |
DAT: tclk-q-A + tcomb
DRTSU: Tclk - tsu-B
where, Tclk = Clock period,
tclk-q-A = Propagation Delay for Flop A from CLK pin to Q pin,
tcomb = Combinational Path Delay,
tsu-B = Setup time for Flop B.
For no Setup violation, DAT ≤ DRTSU
DRTHO: THO-B
where , THO-B = Hold time for Flop B
For no Hold violation, DAT ≥ DRTHO
When clock uncertainty is considered, the above analysis can be framed as:
DAT: tclk-q-A + tcomb
DRTSU: Tclk - tsu-B + tuncertainty
DRTHO: THO-B + tuncertainty
where, Tuncertainty = Clock delay at destination flop’s clock pin with respect to source flop’s clock pin. (Can be positive or negative).
While doing timing analysis, we can specify an uncertainty value. Timing tools consider a negative uncertainty for setup analysis and a positive value for hold analysis.
For example,
set_clock_uncertainty 250 CLK1 -setup
set_clock_uncertainty 200 CLK1 -hold
While doing timing analysis, we can specify an uncertainty value. Timing tools consider a negative uncertainty for setup analysis and a positive value for hold analysis.
For example,
set_clock_uncertainty 250 CLK1 -setup
set_clock_uncertainty 200 CLK1 -hold
During analysis, tool uses -250 in DRTSU and +200 in DRTHO equations. Considering the worst case for each.
DAT: tclk-q-A + tcomb
DRTSU: Tclk - tsu-B + tskew - tjitter
DRTHO: THO-B + tskew + tjitter
where, tjitter = Worst case Clock jitter at destination flop wrt to source flop’s clock pin.
These are the final equations, with the Setup and Hold inequalities are same as above.
End point: D pin of a flop
In-to-Out paths:
Start point: Input port
Input-to-Reg paths:
Start point: Input portEnd point: D pin of a flop
Fig: Input-to-Reg paths |
DAT: Tin + tcomb
DRTSU: Tclk - tsu-B
where, Tclk = Clock period,
Tin= Input delay outside to DUT,
tcomb = Combinational Path Delay,
tsu-B = Setup time for Flop A.
For no Setup violation, DAT ≤ DRTSU
DRTHO: THO-B
where , THO-B = Hold time for Flop A
For no Hold violation, DAT ≥ DRTHO
Reg-to-Out paths:
Start point: CK pin of a flop
End point: Output port
Fig: Reg-to-Output |
DAT: tclk-q-A + tcomb + Tout
DRTSU: Tclk
where, Tclk = Clock period of clock wrt output delay,
Tout= Output delay outside to DUT,
tclk-q-A = Propagation Delay for Flop A from CLK pin to Q pin,
tcomb = Combinational Path Delay,
For no Setup violation, DAT ≤ DRTSU
DRTHO: 0
For no Hold violation, DAT ≥ DRTHO
In-to-Out paths:
Start point: Input port
End point: Output port
Fig: Input-to-Output |
DAT: Tin + Tcomb + Tout
DRTSU: Tclk
where, Tclk = Clock period of clock wrt output delay,
Tin= Input delay outside to DUT,
Tout= Output delay outside to DUT,
tcomb = Combinational Path Delay,
For no Setup violation, DAT ≤ DRTSU
DRTHO: 0
For no Hold violation, DAT ≥ DRTHO
PS: As a self-study, you can modify above DAT and DRT equations by considering clock jitter and uncertainty.
